Superior DomeCam HLVF is a wired AI-powered security IP camera with a 2.8–12 mm motorized varifocal P-Iris lens that provides clear and detailed images at any focal length. The camera supports the True WDR technology for accurate color reproduction in scenes with high-contrast lighting. Also, the device features hybrid illumination that combines infrared (IR) and white light to enhance nighttime visibility.
The built-in microphone and speaker provide two-way audio, while audio and alarm inputs/outputs expand integration capabilities with other security devices. The camera supports PoE and 12 V⎓ power supply options.
The camera is connected to the system via Ethernet. The recorded videos can be stored on an Ajax NVR added to the same network, or on a memory card installed in the camera.
Superior DomeCam HLVF is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
The camera is available in two versions:
- Superior DomeCam HLVF (4 Mp)
- Superior DomeCam HLVF (8 Mp)
Camera versions with other enclosures are also available. All Ajax cameras are available here.

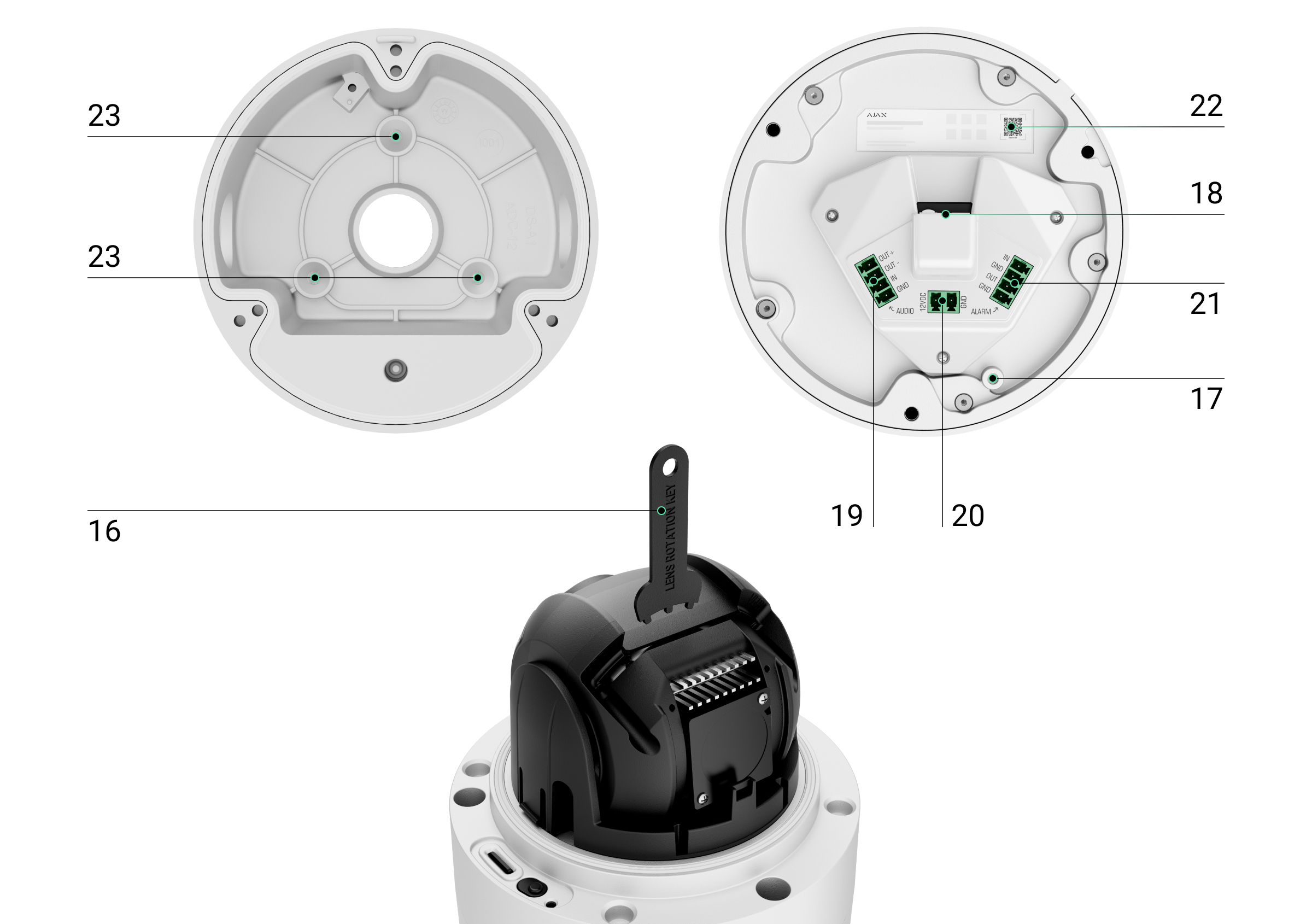

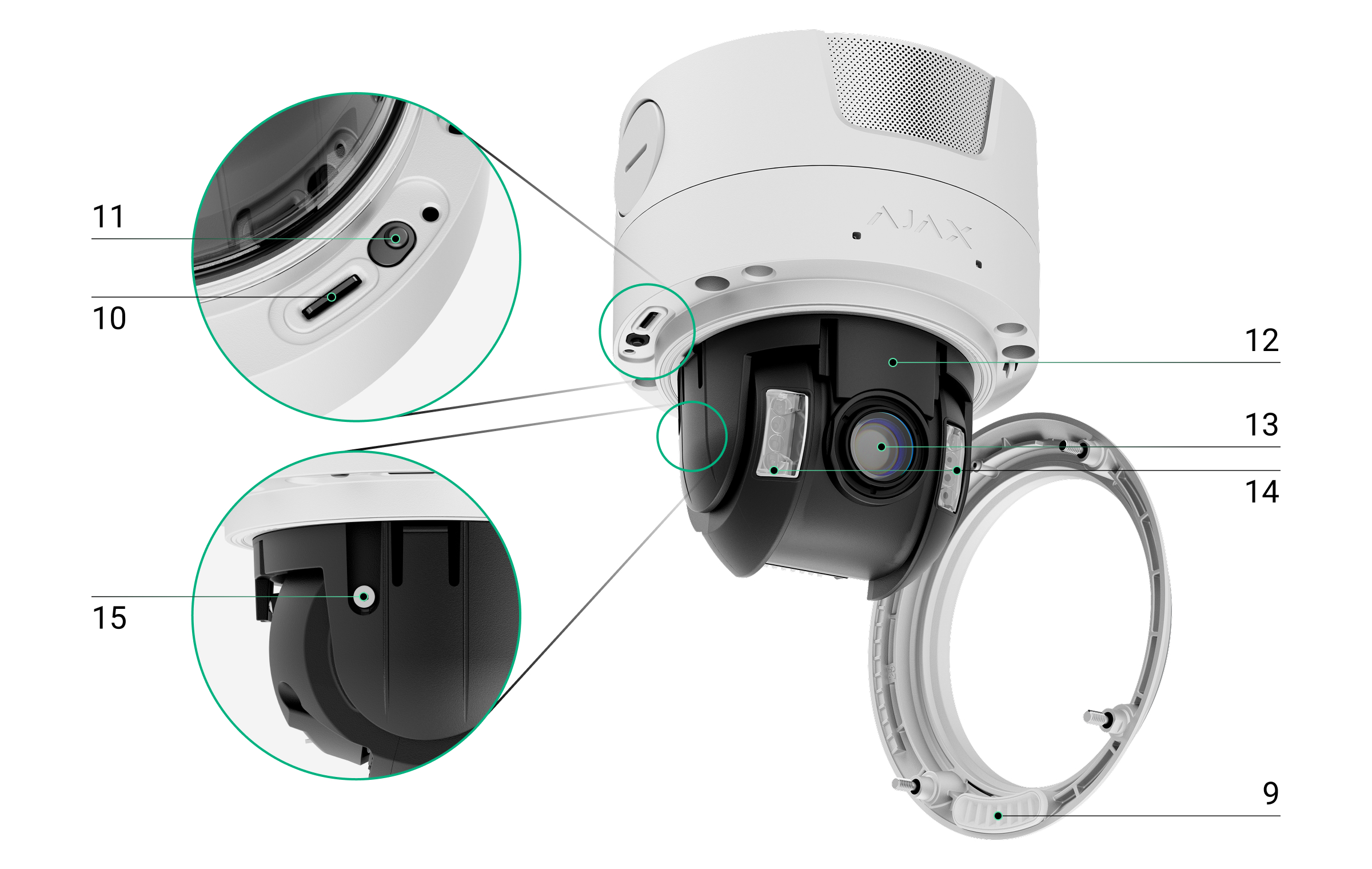

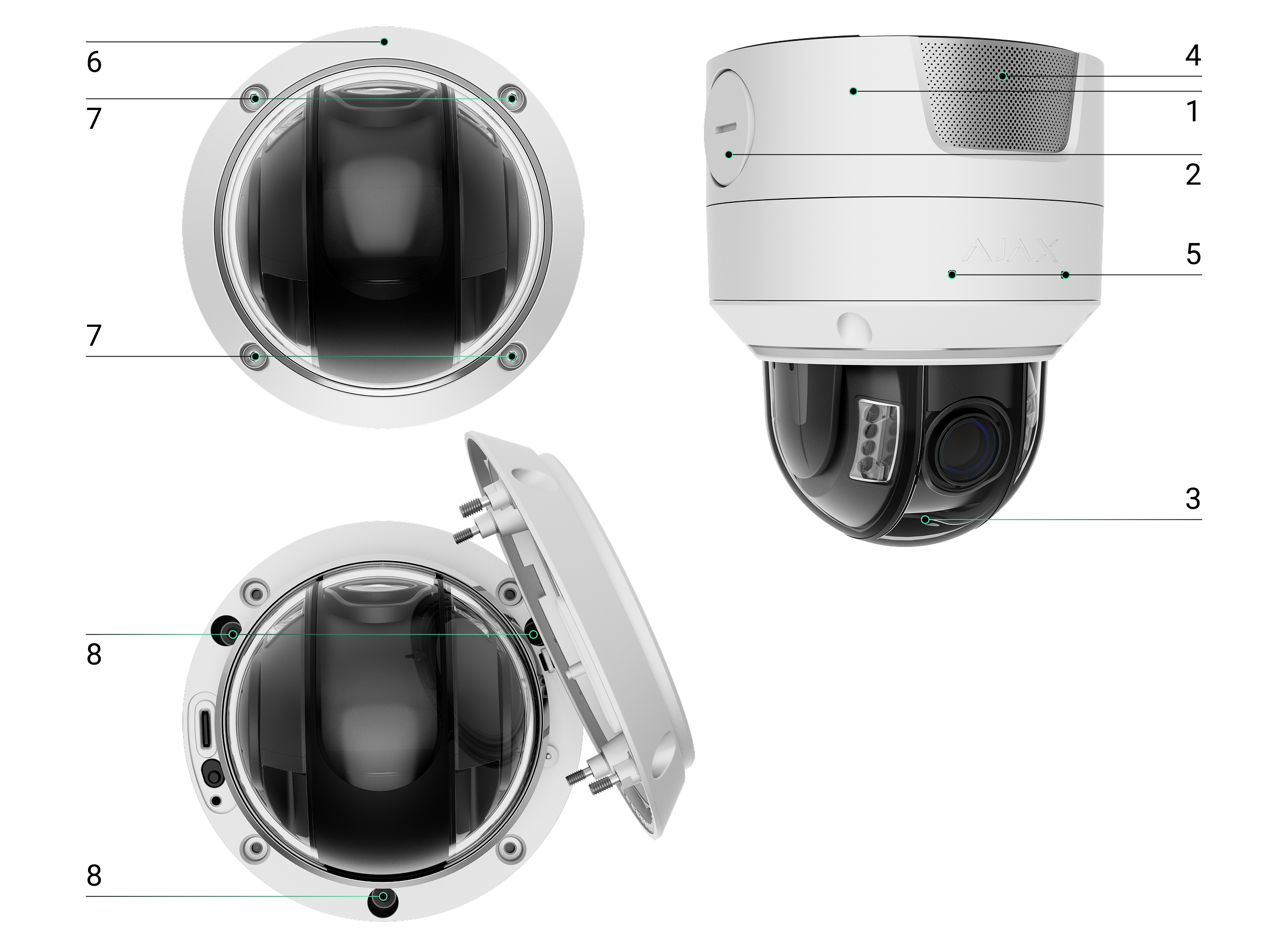

Functional elements
- Junction box.
- Cable gland sealing plug. Remove the plug to run the wires.
- Transparent protective cover for the camera lens.
- Speaker for two-way voice communication.
- Microphones.
- Camera enclosure lid.
- Screws for securing the camera lid. Can be unscrewed with a bundled hexagon key (Ø 2.5 mm).
- Holes for attaching the camera to the junction box.
- Rubber sealing plug for protecting the microSD slot and reset button.
- Slot for a microSD card.
- Reset button with an LED indicator.
- Rotating base with the camera lens.
- Camera lens.
- White and IR LED indicators. Used for recording videos in low-light conditions.
- Side screw for adjusting and fixing the tilt angle of the camera lens.
- Lever for adjusting the camera lens orientation (horizontal or vertical).
- Hole for attaching a safety cable.
- Ethernet port.
- Audio input/output connector.
- Power supply connector.
- Alarm input/output connector.

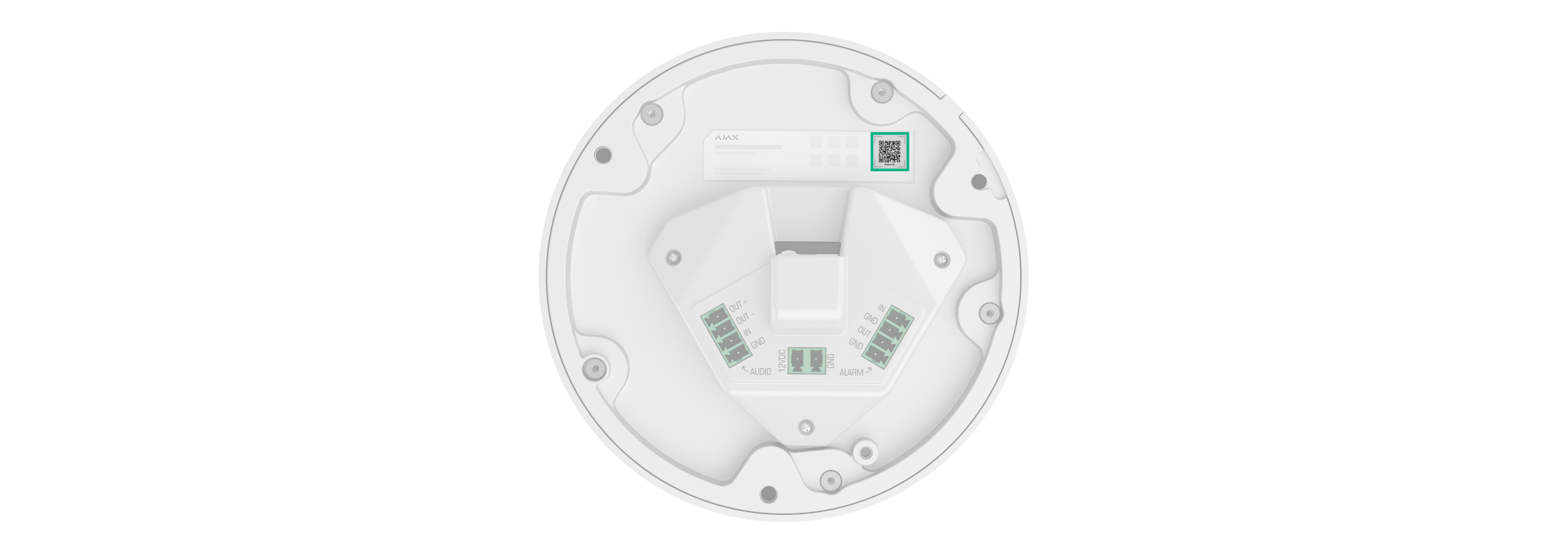

- QR code with the device ID. Used for adding the camera to a space.
- Holes for attaching the camera junction box to a surface.
Operating principle
Superior DomeCam HLVF is an IP camera that uses artificial intelligence (AI) for object recognition. Its algorithms can identify moving objects, distinguishing between humans, animals, or vehicles.
The camera is equipped with a 2.8–12 mm motorized varifocal P-Iris lens that allows remote adjustment of the focal length and optimal lighting control. Motorized zoom and focus enable precise framing of the protected area without physical access to the camera. The P-Iris mechanism automatically adjusts the aperture to maintain sharpness and balanced brightness in all lighting conditions.
The device features hybrid illumination, combining infrared and white light to ensure high-quality images in any lighting conditions. Superior DomeCam HLVF automatically switches between IR and white light depending on the scene, delivering clear black-and-white images in low light and providing color pictures when motion is detected or additional illumination is required. The camera also adjusts the light intensity in real time to prevent overexposure, ensuring clear visibility of both near and distant objects.
The built-in microphone and speaker provide two-way audio, enabling users to listen and communicate through the camera. The audio and alarm inputs/outputs expand integration capabilities with third-party devices.
You can install a microSD card with a memory capacity of 32 to 256 GB (not included in the complete set of the camera). The memory card should be V30 or faster. Additionally, the device can operate without a memory card or via NVR.
Using the video storage calculator, you can calculate the NVR or camera required storage capacity and estimated recording time based on the video stream settings.
Superior DomeCam HLVF enables you to:
- Watch the video in real-time with the ability to zoom in for a closer look.
- Remotely adjust the zoom and focus using the motorized varifocal lens for optimal framing of the monitored area.
- Communicate with visitors using the camera’s microphone and speaker.
- Access archived videos, navigating through them based on recording chronology and calendar (this feature is available if a microSD memory card is installed in the camera, or it is connected to NVR with an installed hard disk).
- Configure motion detection zones and adjust the sensitivity level.
- View the Video wall that combines images from all connected cameras.
- Quickly access automation device control from the cameras’ video player menu.
- Create video scenarios that send a short video from the selected camera to the Ajax app when the security detector is triggered.
- Download the required segments of video recordings from the archive to smartphones or PCs (this feature is available if a microSD memory card is installed in the camera, or it is connected to NVR with an installed hard disk).
- Configure connection via ONVIF to integrate the device with video management systems (VMS) such as Milestone, Genetec, Axxon, and Digifort.
The video recording segments downloaded from Superior DomeCam HLVF have the Ajax digital signature that verifies the integrity of the exported video. To verify the authenticity of the downloaded video recordings, use the Ajax Media Player tool.
An admin or PRO with rights to configure the system can set up a connection via ONVIF in Ajax apps.
Video scenarios
The Ajax system offers the capability to use IP cameras for alarm verification. Video scenarios enable the substantiation of alarm triggers with the corresponding video from cameras installed at the facility.
Cameras can be configured to respond to alarms from a single device, multiple devices, or all connected devices. Combined detectors can register various types of alarms, allowing you to configure responses to a wide range of alarm types, whether it’s just one, several, or all of them.
You can also configure the sirens to activate when motion or a specific AI-recognized object is detected. When video devices detect motion or a specific AI-recognized object, the system automatically activates sirens added to the hub to sound an alarm.
Video wall in Ajax apps
The user can manage videos on the Video wall
tab, accessible once at least one camera has been added. This feature ensures quick access to all connected cameras, displayed in accordance with privacy settings.
In mobile Ajax apps, you can:
- Control the camera’s zoom and focus.
- Switch between cameras.
- View recorded footage together with other cameras.
- Search for the desired camera by name.
- Manage a PTZ camera.
In desktop Ajax apps, you can:
- Control the camera’s zoom and focus.
- Switch between cameras.
- View recorded footage together with other cameras.
- Search for the desired camera by name.
- Organize cameras by room, NVR, or group.
- Manage a PTZ camera.
- Save customized layouts for displaying video from cameras.
- Change the order in which the camera video is displayed.
- Create templates for displaying videos in a slide show.
Privacy zones
The system allows hiding parts of the frame. For instance, if a sensitive area or object is in view, activity around it can be recorded without revealing its contents by setting up the right zone. No motion or object will be detected and recorded in the privacy zone.
To do this, in Ajax apps:
- Go to the Devices
tab. - Select the camera from the list. Optionally, if the camera is connected to the video recorder, find NVR, tap Cameras, and select the camera.
- Go to the device states by tapping the gear icon
. - Tap the gear icon again to open Settings.
- Select the Privacy zones menu.
- Open the Configure privacy zones menu and select the required area.
- Tap the
icon and return to the camera settings.
The user can create up to four private zones.
Line crossing detection
Line crossing detection is a feature that enables video surveillance cameras to respond when a specified object — such as a person, pet, or vehicle — crosses a virtual line drawn in the camera frame. When the line is crossed, the system can send a notification or an alarm and record the crossing footage in the archive.
To add a line in an Ajax app:
- Select the required space.
- Go to the Devices tab.
- Select the camera from the list. If it is connected to a network video recorder, find NVR and tap Cameras.
- Open the camera settings by tapping the gear icon twice.
- Go to the Detection menu.
- Open the Line crossing detection settings.
- Tap Add or
in the upper-right corner. - In the menu that opens, configure the following:
- Set line crossing rule. Adjust the line position and crossing direction.
- Enter a name for the line in the Title field.
- Select the required triggers.
- Set line crossing rule. Adjust the line position and crossing direction.
- Tap Save to add the line.
After adding a line, it is strongly recommended to test how the camera detects line crossings. For guidance on fine-tuning the line for accurate detection, refer to the Recommendations and best practices section.
You can add up to 4 lines per camera.
Firmware update
If a new firmware version for Superior DomeCam HLVF is available, the
icon appears in Ajax apps in the Devices tab. An admin or a PRO with access to the system settings can launch an update via device states or settings. The on-screen instructions help to update the firmware successfully.
Selecting the installation site
When choosing the optimal location to install Superior DomeCam HLVF, consider the camera’s viewing angle and any potential obstacles that might obstruct its view.
Consider the placement recommendations when designing the security system project for your object. The security system should be designed and installed by professionals. A list of recommended partners is available here.
Where not to install the camera
- Indoors or outdoors, where the temperature and humidity levels do not align with the specified operating parameters.
- In locations where objects or structures might obstruct the camera’s view.
- In locations that are subject to constant vibration or have unstable mounting surfaces. This may affect the accuracy of motorized zoom and autofocus.
- Too close to reflective surfaces, such as walls or glass, where IR or white light may reflect into the lens, reducing image quality.
Installation
Before installing Superior DomeCam HLVF, ensure that you have read the camera’s operation and maintenance recommendations and have chosen an optimal location that complies with the requirements of this manual.
When connecting an external power supply and using Superior DomeCam HLVF, follow the general electrical safety regulations for using electrical appliances, as well as the requirements of regulatory legal acts on electrical safety.
To install the device:
- Using the installation template, mark the drilling points on the surface where you plan to mount the camera. Secure the template to the chosen installation location with tape and drill three holes as shown on the template.

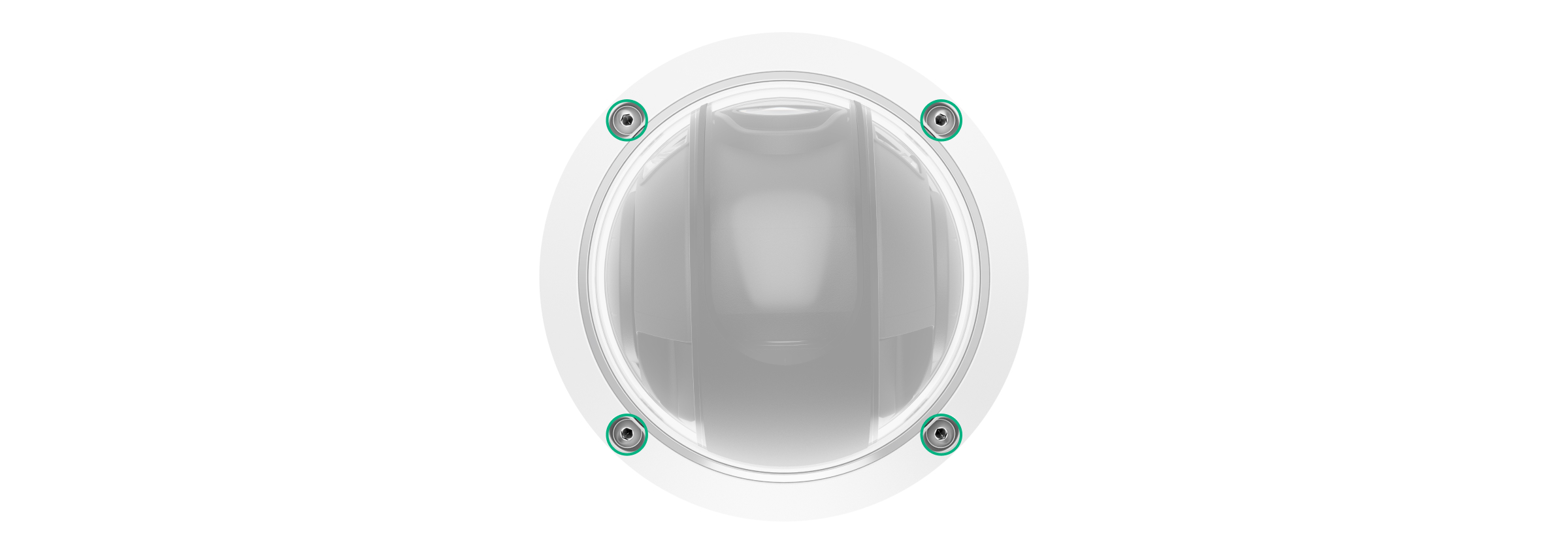

- Using the bundled hexagon key (Ø 2.5 mm), unscrew the four screws securing the camera lid. Remove the lid.

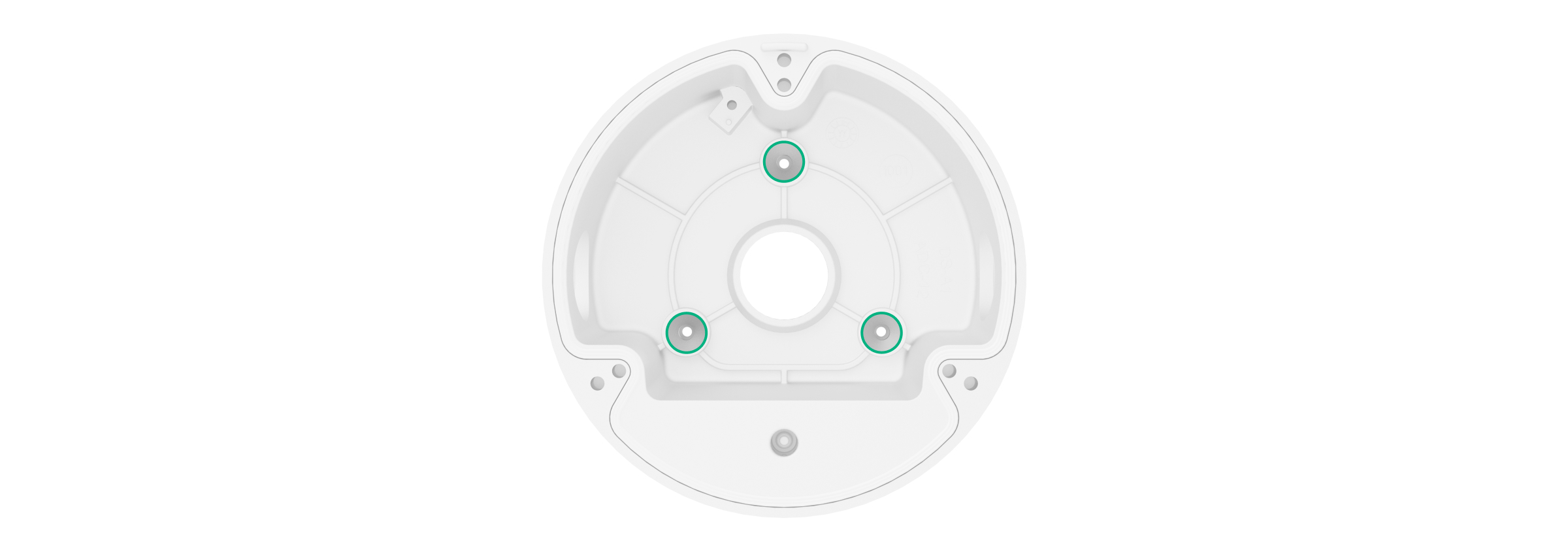

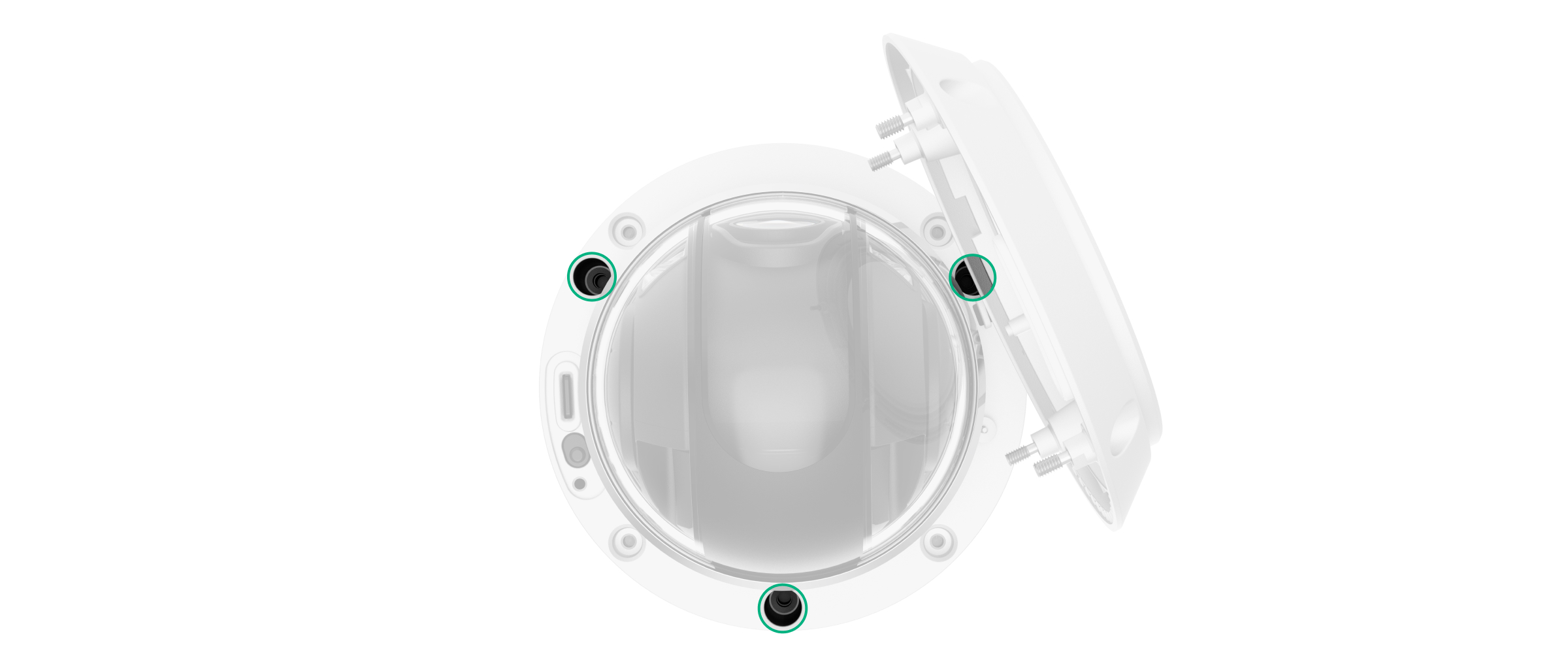

- Using the bundled hexagon key (Ø 2.5 mm), unscrew the three screws securing the camera junction box. Remove the junction box.
- Route the cables inside the junction box through the bottom or side hole. Use the bundled cable gland when running the cables through the side hole to ensure the junction box is sealed tightly. Close the unused hole with the cable gland sealing plug.
- Secure the junction box to the surface at the selected installation site with the bundled screws using all fixing points.
- Attach the safety cable to the camera enclosure and hook the cable inside the junction box.
- Connect the Ethernet cable to the camera.
- If the camera is not powered via PoE, connect an external power supply to the camera.
Recommended electrical specifications for an external power supply are 12 V⎓ ± 20% with a current of at least 1.9 A.

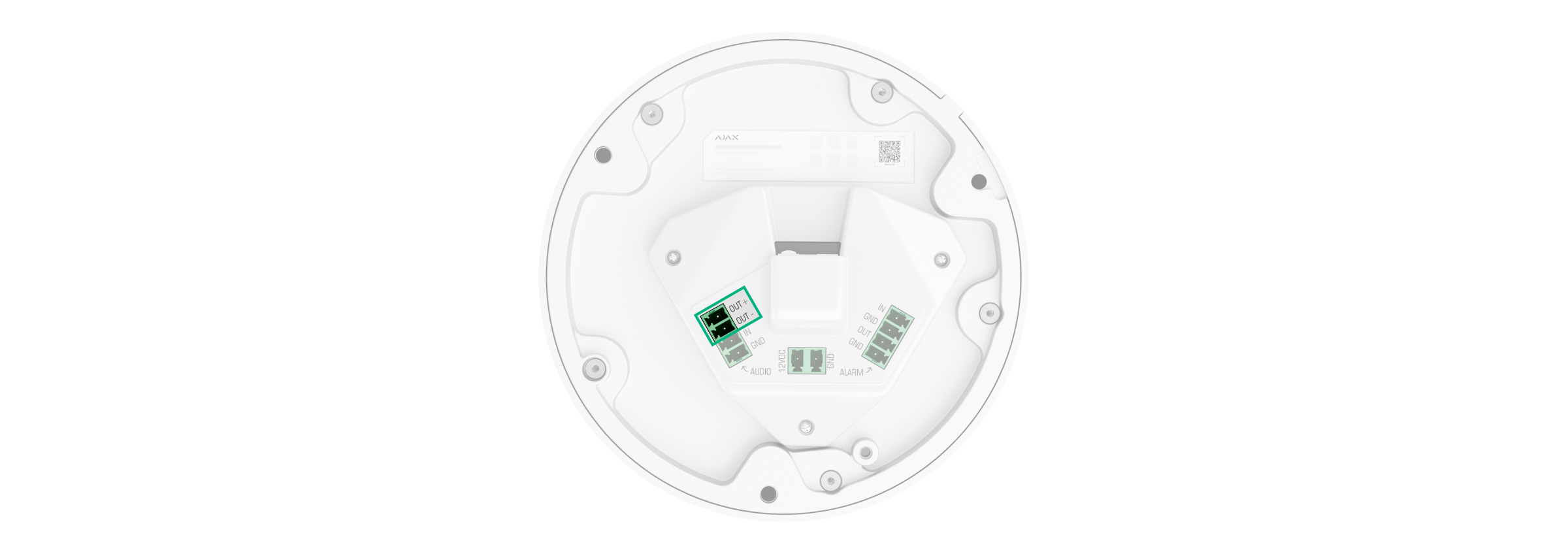

- Connect the speaker cable from the junction box to the camera’s Audio OUT port.
- If necessary, connect other cables to the camera connectors.
- Add the camera to the system.
- Secure the camera to the junction box using all fixing points.

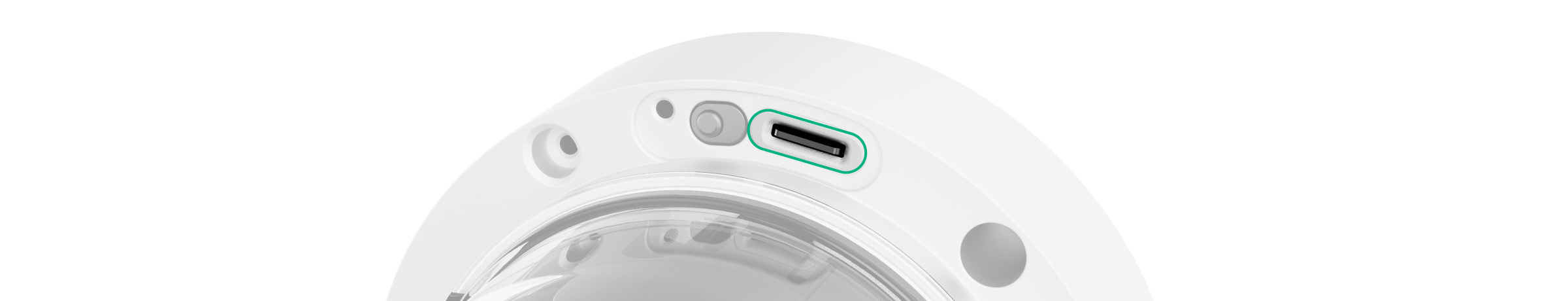

- Insert a microSD card (not included in the camera complete set) into the slot.

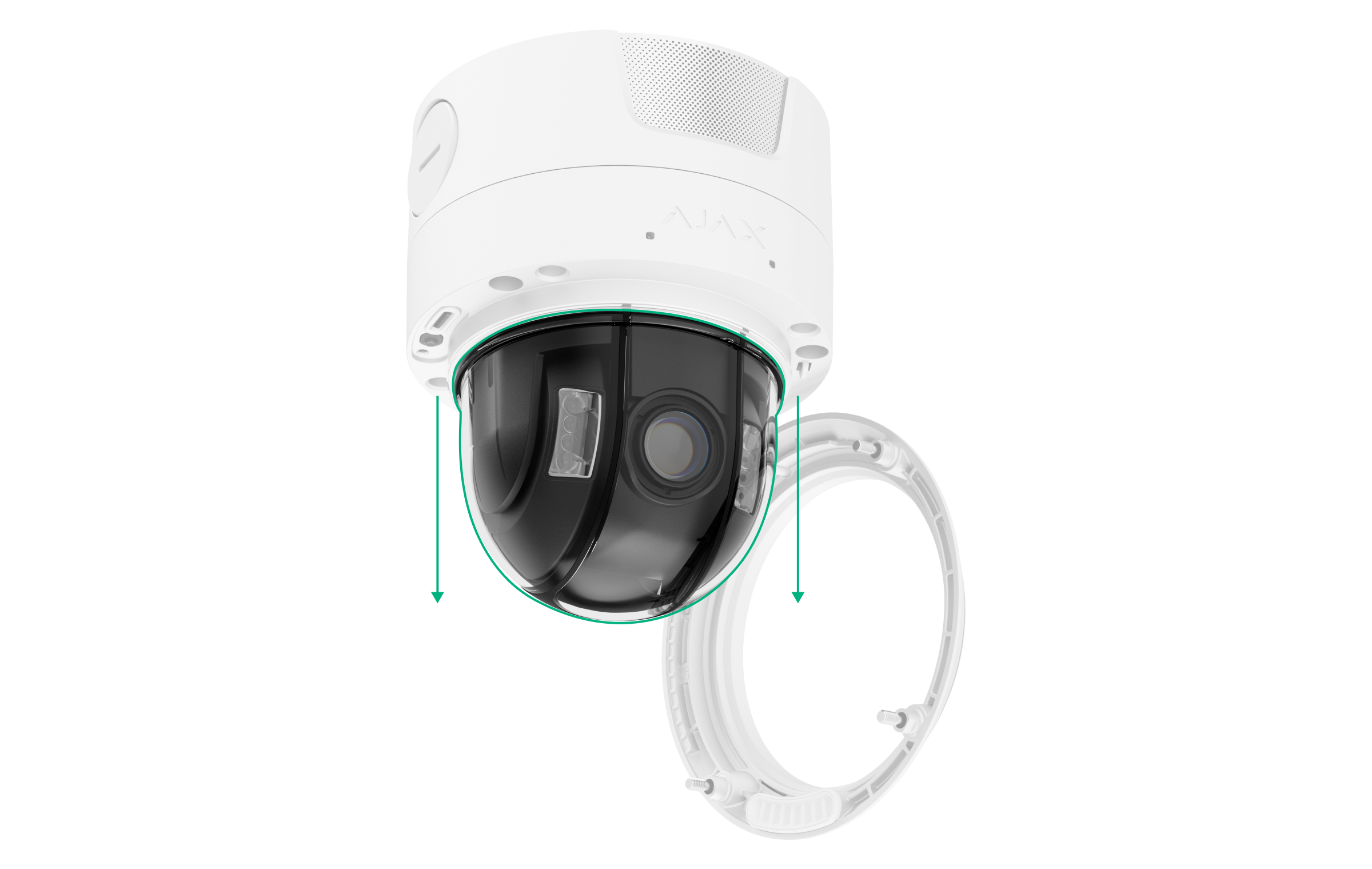

- Remove the lens protective cover by pulling it out of the camera.

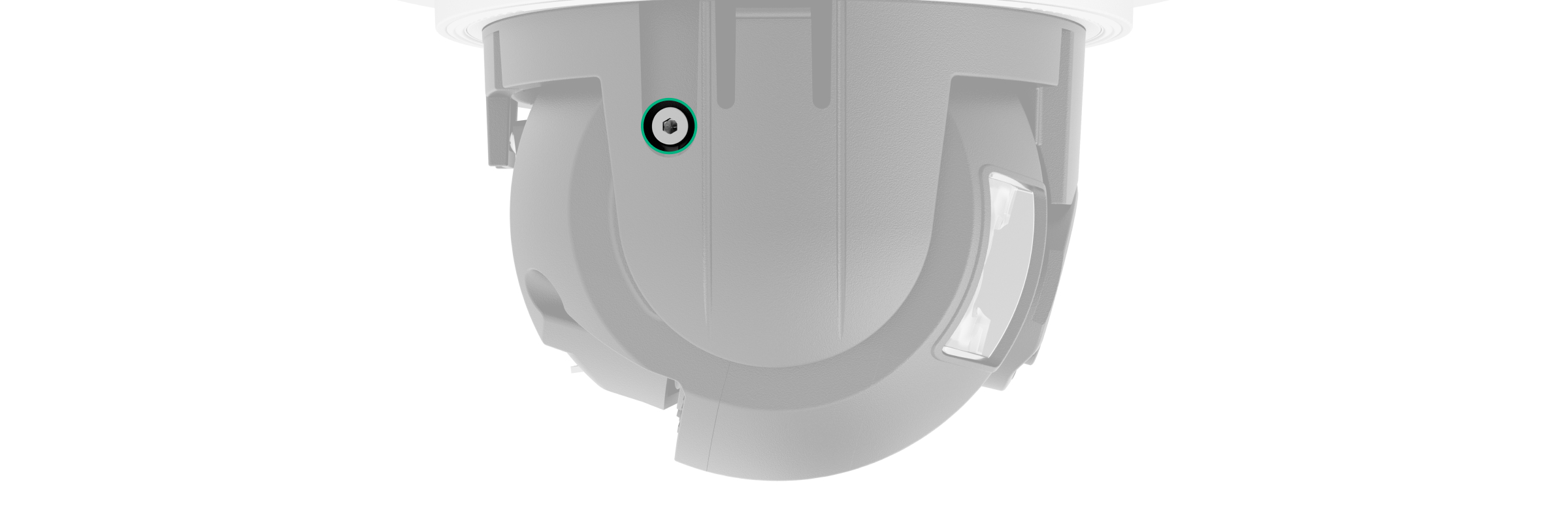

- Using the bundled hexagon key (Ø 2.5 mm), loosen the side screw that allows the camera lens to be rotated.

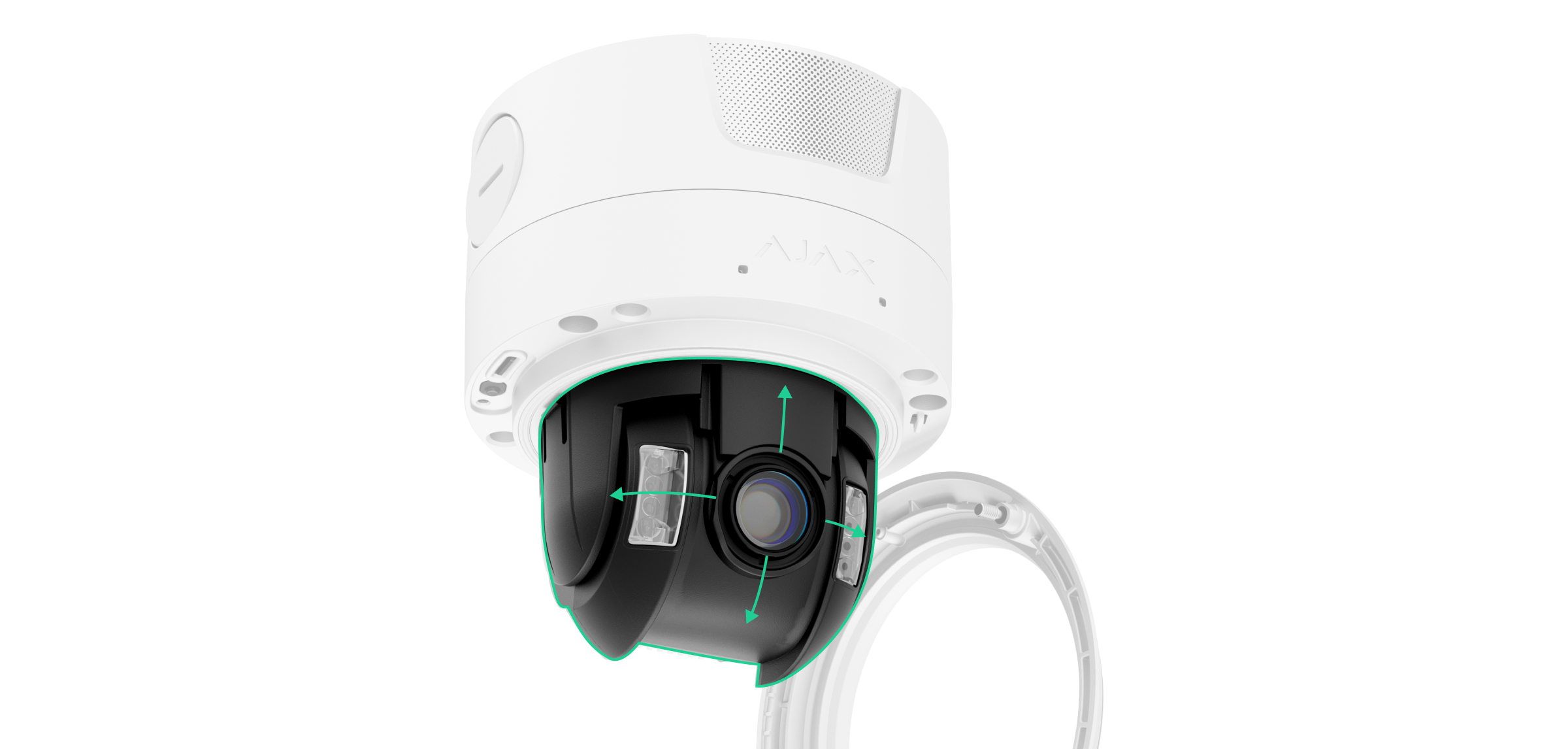

- Adjust the lens position. Tighten the side screw to fix the position.

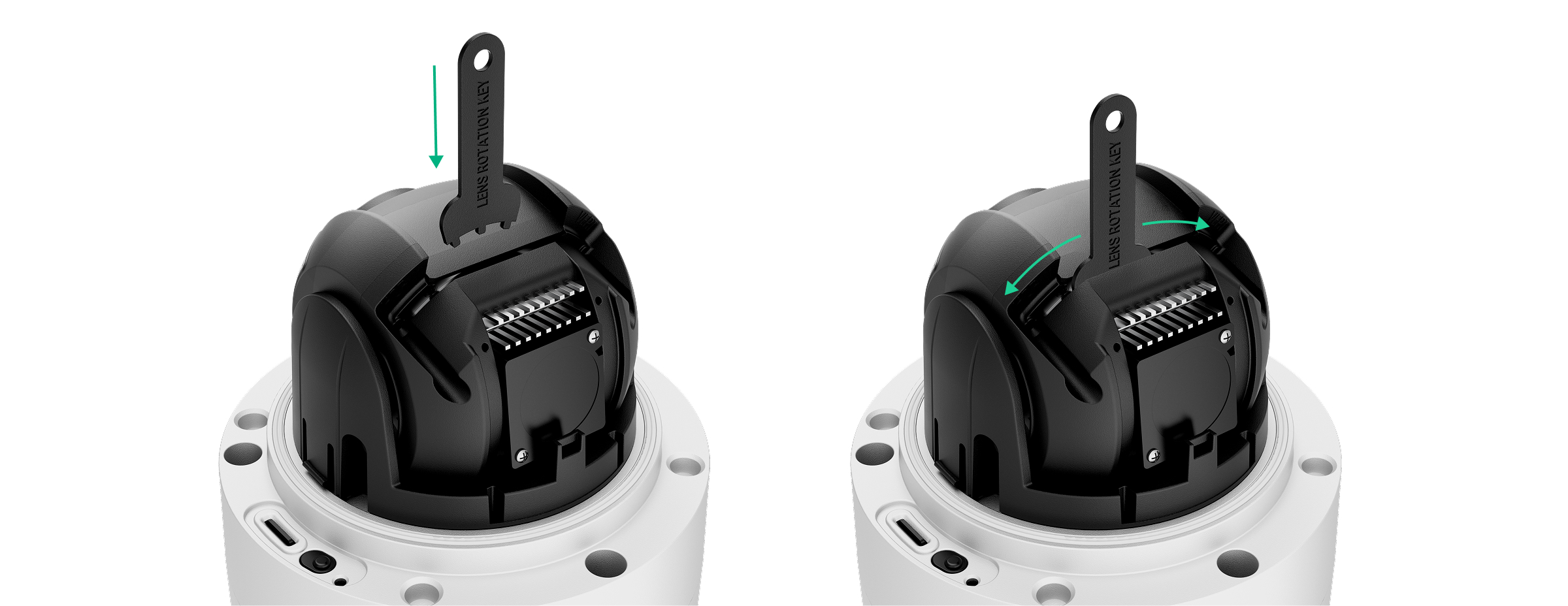

- If necessary, adjust the camera lens orientation (vertical or horizontal) by moving the lever to the VERT or HOR position.
- Install the camera lens protective cover and the lid. Tighten the four screws that secure the camera lid using the bundled hexagon key (Ø 2.5 mm).
- Ensure the camera lens faces the protected area. If necessary, adjust the lens position by removing the camera lid and protective cover and rotating the lens.
After adding Superior DomeCam HLVF to the system, format the memory card in the camera settings.
Adding to the system
Superior DomeCam HLVF is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
Before adding the device
- Install an Ajax PRO app.
- Log in to your PRO account or create a new one.
- Select a space or create a new one.
- Add at least one virtual room.
- Ensure the space is disarmed.
Adding to the space
- Open an Ajax PRO app. Select a space to which you want to add the device.
- Go to the Devices tab and tap Add device.
- Scan the QR code or enter the device ID manually. A QR code with an ID is placed on the device enclosure. Also, it is duplicated on the device packaging.
- Assign a name to the device.
- Select a virtual room and a security group (if Group mode is enabled).
- Tap Add device to proceed.
- Wait for Superior DomeCam HLVF to establish the connection. Once connected, you will see the live image from the device.
- Tap Finish to add the device.
The connected device will now appear in the list of devices in an Ajax app.
Note that Superior DomeCam HLVF is compatible with only one space. To connect the device to the new space, remove it from the device list of the old one. This removal process needs to be done manually in an Ajax app.
You can calculate the number of cameras and NVRs that can be added to the space using the video device calculator.
Pairing with an Ajax NVR
If Superior DomeCam HLVF has already been added to the space as a standalone device, you can easily pair it with an Ajax NVR. If not, refer to the Adding to the space section to know how to add Superior DomeCam HLVF to the NVR or as a standalone device.
To pair Superior DomeCam HLVF with the NVR, in an Ajax app:
- Go to the Devices tab.
- Select NVR from the list and tap Cameras.
- Tap Add camera and wait until the network scan is complete and the available devices connected to the local network are displayed.
Note that Superior DomeCam HLVF must be connected to the same local network as the NVR.
- Select the device.
- Assign a name to the device, select a virtual room and a group, then tap Finish.
- Wait for the system to add the device, then tap Close.
The device will now appear in the list of NVR cameras in an Ajax app.
Configuring the alarm input/output port connection
The section is a work-in-progress.
Configuring the audio input/output port connection
The section is a work-in-progress.
Resetting to the default settings
To reset the camera to the default settings:
- Turn off the camera by disconnecting the external power supply or Ethernet cable (if it is powered by PoE).
- Using the bundled hexagon key (Ø 2.5 mm), unscrew the four screws holding the camera enclosure in place. Remove the camera lid.

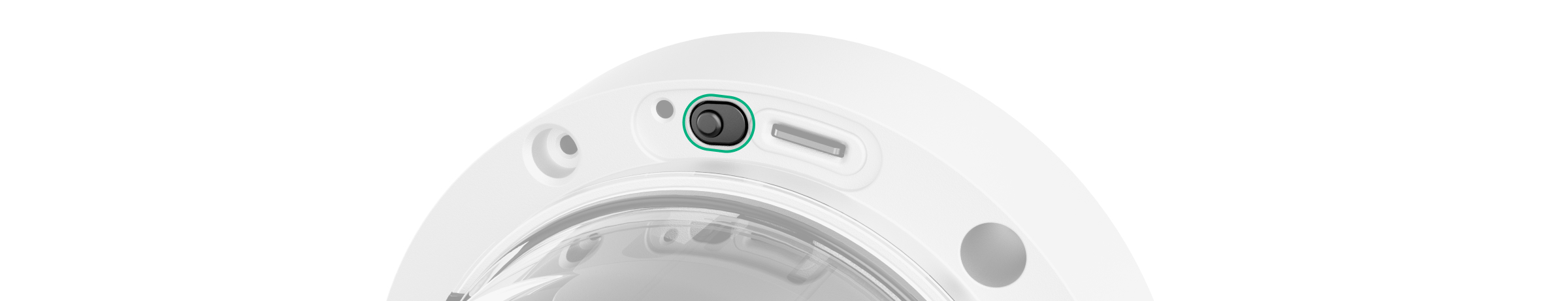

- Press and hold the reset button.
- Power the camera while the reset button is pressed, and wait until the button’s LED indicator lights up violet. This will take about 50 seconds.
The button’s LED indicator lights up blue for 20 seconds after powering the camera with a pressed reset button. Then it turns off for 30 seconds and lights up violet. This means that the camera has been restored to the default settings.
- Release the button.
Icons
The icons in the app display some device states. To access them:
- Select a space in the Ajax app.
- Go to the Devices tab.
- Find Superior DomeCam HLVF in the list.
| Icon | Meaning |
 |
The extra services are activated according to the subscription. |
 |
The device operates in Night mode. |
 |
The microSD card is not installed. |
 |
The microSD card is installed. |
 |
A malfunction of the microSD card is detected. Formatting the microSD card is recommended. |
 |
The microSD card is being formatted. |
 |
The new firmware version is available. |
 |
Firmware update is in progress: downloading/installing the latest version. |
 |
An error was detected during the firmware update. |
 |
The device has lost connection with the Ajax Cloud server. |
 |
The device connection via ONVIF is enabled. |
 |
There is no access to view the device’s video. |
States
The states include information about the device and its operating parameters. You can find Superior DomeCam HLVF states in Ajax apps:
- Go to the Devices tab.
- Select Superior DomeCam HLVF in the list. Optionally, if the camera is connected to the video recorder, find NVR, tap Cameras, and select Superior DomeCam HLVF.
- Go to the device states by tapping the gear icon .
| Parameter | Meaning |
| Extra services |
The field is available in Ajax PRO apps and displayed when extra services are available or activated for the device according to the subscription. Tapping on the field shows the information about assigned services and contacts of the company providing these services. |
| Malfunction |
Tapping on The field is displayed only if a malfunction is detected. |
| Firmware update | The field is displayed when the firmware update is available:
Tapping on |
| Connection | Status of the device’s internet connection via Ethernet:
Tapping the icon |
| Connection to NVR |
Displayed when the camera is connected to the NVR. Status of the device connection to the NVR:
Tapping the icon |
| Storage location | Displays the list of storage devices connected to the camera:
Tapping the icon |
| Memory card | Status of the memory card connection to the camera:
|
| Resolution | The current camera resolution. |
| Frame rate | The current camera frame rate. |
| Bit rate | The current camera bit rate. |
| Video codec | The current video codec:
|
| Motion detection | The Motion detection function status:
|
| Object detection | The Object detection function settings:
|
| ONVIF integration |
Shows the current status of the device’s ONVIF integration. This state is displayed only when ONVIF integration is enabled. |
| Permissions to view |
Displays the number of users who have access to view video from the device. Tapping on The state is not available in Ajax PRO apps. |
| Uptime | The camera’s operating time since the last reboot. |
| Alarm reaction | |
| Operating mode | Shows how the device reacts to alarms:
|
| Delay when entering |
Delay when entering (alarm activation delay) is the time the user has to disarm the security system after entering the premises. |
| Delay when leaving |
Delay when leaving (arming delay) is the time the user has to leave the premises after arming. |
| Arm in Night mode |
When this option is enabled, the device will enter the armed mode when the system is set to Night mode. |
| Night mode delay when entering |
Entry delay time in Night mode. Delay when entering (alarm activation delay) is the time the user has to disarm the security system after entering the premises. |
| Night mode delay when leaving |
Exit delay time in Night mode. Delay when leaving (arming delay) is the time the user has to leave the premises after arming. |
| Firmware | Device firmware version. |
| Device ID | Device ID. It is also available on the QR code on the device enclosure and its package box. |
opens the list of device malfunctions.Settings
To change camera settings, in an Ajax app:
- Go to the Devices tab.
- Select Superior DomeCam HLVF in the list. Optionally, if the camera is connected to the video recorder, find NVR, tap Cameras, and select Superior DomeCam HLVF.
- Go to the device states by tapping the gear icon .
- Go to Settings by tapping the gear icon again.
- Set the required parameters.
- Tap Back to save the new settings.
| Setting | Meaning |
| Name |
Camera name. Appears in the list of devices and notifications in the events feed. To change the device name, tap on the text field. The name can contain up to 12 Cyrillic characters or up to 24 Latin characters. |
| Room |
Selecting the virtual room to which Superior DomeCam HLVF is assigned. The room name is displayed in the text of SMS and notifications in the events feed. |
| Recording preferences | Selection of the Recording mode for each storage device:
Selection of the armed mode when the camera records video:
|
| Notifications from camera detectors |
Opens a menu with Notifications from camera detectors settings. |
| Detection |
Opens a menu with Detection settings. |
| Alarm IN/OUT contacts |
Opens a menu with Alarm IN/OUT contacts settings. |
| Video stream |
Opens a menu with Video stream settings. |
| Image |
Opens a menu with Image settings. |
| Audio | Settings for audio capture and playback.
|
| Privacy zones |
Allows the user to select zones that are not displayed on the camera video. Instead, the user sees a black rectangle. |
| Alarm response |
Opens a menu with Alarm response settings. |
| Firmware update |
Switches the device to the firmware updating mode if a new version is available. |
| Connection |
The setting for selecting the camera’s connection type to the Ajax Cloud service via Ethernet. Available connection types:
|
| Archive |
Selection of the maximum archive depth. It can be set in the range of 1 to 360 days or can be unlimited. Allows the user to format the memory card. |
| Service |
Opens a menu with Service settings. |
| Monitoring |
The setting is available in Ajax PRO apps. Allows a PRO with rights to configure the system to set up:
|
| Report a problem | Allows the user to describe a problem and send a report. |
| User manual | Opens the camera user manual. |
| Unpair from NVR |
Unpairs the device from the NVR to which it was paired. The option is available if the device is paired with the NVR. |
| Delete device | Erases all device settings and deletes the device from the space. Also, it unpairs the device from the NVR if such a connection is set up. |
Notifications from camera detectors
| Setting | Meaning |
| Notify if detected | The user can select the type of object or motion, and when it’s recognized, a notification is received and sirens are activated:
Note that the corresponding types of object or motion should be enabled in the Detection settings. To specify whether motion detection should activate the sirens, tap on the required type of object or motion and enable the Activate sirens upon detection option. The feature is available when the camera and at least one siren are added to an Ajax hub with OS Malevich 2.31 and later versions. |
| When to notify | Selection of the mode when the camera sends notifications:
|
| Notification delay and interval | |
| Interval in reporting similar events |
Selecting the time interval in reporting similar events: from 30 seconds to 8 hours. The default interval is 3 minutes. Selected time applies for each detection type separately and helps to avoid repeated informing of the same triggering reason. |
| Duration of object detection for notification |
Selecting how long an object should remain in the camera’s field of view so the system sends a notification about the detected object. The available values are Notify instantly or 2, 3, 4, or 5 seconds. The default time is 2 seconds. |
Detection settings
| Setting | Meaning |
| Motion detection | When the option is enabled, the camera detects motion using its built-in software. |
| Analyze image |
The software algorithm for analyzing images used to detect motion. The option is available when Motion detection is enabled. |
| Motion detection settings | Opens a menu with motion detection settings:
The option is available when Motion detection is enabled. |
| Object detection | When the option is enabled, the camera identifies the type of moving objects using a built-in algorithm. In the video, people, pets, and vehicles are highlighted with colored rectangles. |
| Object detection settings | Opens the menu with object detection settings:
The option is available when Object detection is enabled. |
| Line-crossing detection |
Enables detection of objects that cross a virtual line in the camera’s field of view. |
Alarm IN/OUT contacts settings
| Setting | Meaning |
| Input (camera trigger) | |
| Operation status | Selecting the state of the connected device:
|
| Title | Wired sensor name. |
| Default state | Selecting the normal contact state of the connected device:
|
| Output (controlled device) | |
| Operation status | Selecting the state of the connected device:
|
| Title | Wired sensor name. |
| Default state | Selecting the normal contact state of the connected device:
|
| Pulse duration |
Pulse time of the device. If the pulse from the device lasts longer than specified in this setting, an alarm will be activated. This option can be used to filter out false alarms. |
| Send test impulse | Runs a test of the connected Alarm OUT output. Events are not generated when this button is tapped in the settings. |
Video stream settings
Settings for mainstream and substream parameters.
| Setting | Meaning |
| Mainstream | |
| Video codec | Selecting the video compression standard:
|
| Resolution | Selecting the mainstream resolution (depending on the camera model):
|
| Frame rate | Selecting the frame rate: from 3 to 25 with an increment of 1 frame/s. |
| Bit rate type | Selecting the bit rate type:
|
| Bit rate | Setting the bit rate in kbit/s. |
| GOP length | Selecting the GOP length: from 1 to 250 with an increment of 1 frame. |
| VBR quality / CBR quality | Selecting the compression quality: from 0 to 100 with an increment of 1. |
| Substream | |
| Video codec | Selecting the video compression standard:
|
| Resolution | Selecting the substream resolution:
|
| Frame rate | Selecting the frame rate: from 3 to 25 with an increment of 1 frame/s. |
| Bit rate type | Selecting the bit rate type:
|
| Bit rate | Setting the bit rate in kbit/s. |
| GOP length | Selecting the GOP length: from 1 to 250 with an increment of 1 frame. |
| VBR quality / CBR quality | Selecting the compression quality: from 0 to 100 with an increment of 1. |
Image settings
Settings for camera image quality.
| Setting | Meaning |
| Brightness | Adjusting the image brightness. |
| Color saturation | Adjusting the image color saturation. |
| Sharpness | Adjusting the image sharpness. |
| Contrast | Adjusting the image contrast. |
| Image rotation | Selecting the camera image orientation.
|
| Wide dynamic range (WDR) |
Enabling or disabling the WDR. When WDR is enabled, it helps to enhance the camera images, with too dark or too bright areas. |
| Lighting stabilization | Adjusting the exposure:
This setting is available if Wide dynamic range (WDR) is enabled. |
| Day/Night mode | Selecting the camera vision mode depending on the light conditions:
|
| Mode switching conditions | Selecting the conditions for switching between the day and night modes:
This setting is available if Day/Night mode is set to Auto. |
| Scene illumination | Selecting the scene illumination mode:
|
| Infrared illumination (IR) mode | Adjusting the intensity of the IR illumination:
The setting is used to capture clear black-and-white images at night or in low light and ensures visibility using IR LEDs when conventional lighting is ineffective. This setting is available if Scene illumination is set to Infrared light. |
| IR intensity |
Adjusting the IR light intensity. This setting is available if Infrared illumination (IR) mode is set to Custom. |
| White LED illumination mode | Adjusting the white LED illumination intensity:
The setting is used to capture clear color images at night or in low light and ensures visibility using white LEDs when normal lighting is ineffective. This setting is available if Scene illumination is set to White LED. |
| Max LED intensity |
Adjusting the white LED light intensity. This setting is available if White LED illumination mode is set to Custom. |
| Set exposure based on | Selecting the frame area on which the exposure is based on:
|
| Exposure mode | Selecting the exposure mode:
|
| Image preferences |
Adjusting the shutter speed for less motion blur or for less noise in the image. This setting is available if Exposure mode is set to Auto. |
| Exposure compensation |
Ability to override automatic exposure settings to manually control the image brightness. This setting is available if Exposure mode is set to Auto. |
| Shutter speed |
Selecting the shutter speed to ensure correct exposure for the image. This setting is available if Exposure mode is set to Manual setup. |
| Noise reduction | Enabling or disabling the noise reduction. |
| Parameter value |
Adjusting the noise reduction level. This setting is available if Noise reduction is enabled. |
| Anti-flicker (Power frequency) | Selecting the power grid frequency to reduce image flickering. This setting is used if the camera is capturing the video in low-light conditions and lamps are flickering on the camera image at the power grid frequency. Available parameters:
|
Alarm response settings
| Setting | Meaning |
| Operating mode | Specify how this device will react to alarms:
|
| Delay when entering |
Selecting delay time when entering: 5 to 255 seconds. Delay when entering (alarm activation delay) is the time the user has to disarm the security system after entering the premises. |
| Delay when leaving |
Selecting delay time when leaving: 5 to 255 seconds. Delay when leaving (arming delay) is the time the user has to leave the premises after arming. |
| Arm in Night mode |
When enabled, the device switches to the armed mode when the system is set to Night mode. |
| Night mode delay when entering |
Delay time when entering in Night mode: 5 to 255 seconds. Delay when entering (alarm activation delay) is the time the user has to disable Night mode after entering the premises. |
| Night mode delay when leaving |
Delay time when leaving in Night mode: 5 to 255 seconds. Delay when leaving (arming delay) is the time the user has to leave the premises after enabling Night mode. |
| Night mode delay |
Delay time in Night mode: 5 to 255 seconds. It is the time the user has to disable Night mode (alarm activation delay) after the Entry/Exit detector is triggered. The setting is displayed if the device is set to the Follower operating mode and the Arm in Night mode option is enabled. |
Service settings
| Setting | Meaning |
| Time zone |
Time zone selection. Set by the user and is displayed when viewing video from IP cameras. |
| Connection via ONVIF |
Configuring the device’s connection via ONVIF to third-party VMSs. |
| Security certificates | Allows you to download built-in cloud certificates for secure HTTPS integration with third-party systems via ONVIF. |
| Server connection | |
| Delay of cloud connection loss alarm, sec |
The delay helps reduce the risk of a false server connection loss event. The delay can be set in the range of 30 to 600 seconds. |
| Cloud polling interval, sec |
The frequency of polling the Ajax Cloud server is set in the range of 30 to 300 seconds. The shorter the interval, the faster the cloud connection loss will be detected. |
| Get notified of server connection loss without alarm | When the toggle is enabled, the system notifies users about server connection loss using a standard notification sound instead of a siren alert. |
Indication
The camera does not have an external LED indicator.
Malfunction
When a malfunction is detected, the Ajax app displays a malfunction counter on the device icon. All malfunctions are indicated in the camera States. Fields with malfunctions will be highlighted in red.
A malfunction is displayed if:
- The camera has lost connection with the server.
- The camera’s storage device is malfunctioning. Press the camera’s reset button or format the storage device in the camera settings.
- The storage device needs to be formatted. Format the storage device in the camera settings.
Maintenance
Regularly check the functioning of the device. If you notice any image degradation, loss of clarity, or darkening, check the camera for dirt. Clean the device enclosure from dust, cobwebs, and other contaminants as they emerge. Use soft, dry wipes suitable for equipment maintenance.
Do not use substances that contain alcohol, acetone, petrol, or other active solvents to clean the device. Wipe the lens carefully, as scratches can result in poor-quality images and camera failure.
Ensure that the camera is stored and operates in an environment that meets the specified operating parameters.
Preventing the lens from fogging
The camera lens may fog up if its enclosure is disassembled under unsuitable conditions (e.g., when adjusting the lens field of view, installing a microSD card, resetting the camera, etc.).
To prevent the camera lens from fogging:
- Do not disassemble the camera enclosure outdoors in high humidity (e.g., during rain, drizzle, mist, etc.).
- When installing the camera outdoors, avoid sudden changes in ambient temperature and humidity.
- Prevent the camera from any contact with water until installation is complete.
- When assembling the camera enclosure, tighten screws securely to ensure the enclosure is tight.
Ajax cameras contain desiccants inside, but it may take a few days to absorb excess humidity. If the camera lens remains fogged for more than a week, check the enclosure’s tightness or contact Ajax Technical Support.
Technical specifications
Warranty
Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase.
If the device does not operate properly, we recommend contacting Ajax Technical Support first. In most cases, technical issues can be resolved remotely.
Contact Technical Support:
Manufactured by “AS Manufacturing” LLC
