Which CMSs can Ajax hubs be connected to

Updated

The Ajax system can be connected to the CMS (central monitoring station) software that supports the following protocols:

Direct connection of the hub to the CMS Direct connection and/or via the server using Translator software

In addition to alarms and events, Ajax-integrated monitoring stations can receive photo verifications of alarms and coordinates of the panic button pressed in the app.

Connection via Translator software Direct connection

Translator is an app for connecting security systems to the CMS software. The app allows you to configure the event codes and provides data transmission to the monitoring software via SIA DC-09 (ADM-CID), SurGard (Contact ID) and ADEMCO 685 protocols. When integrating a proprietary protocol, Translator also transmits photo verifications of alarms and coordinates of the panic button pressed in the Ajax app to the CMS.

The hub can communicate with Translator directly or through the Ajax Cloud server. Under a polling interval of 10 seconds, the server detects a communication failure with the security system in 1 minute. Regardless of the connection method, the transmitted data is protected by encryption.

Direct connection can be used as a reserve or as the main channel for transmitting events from the security system hub (central panel) to the CMS software. SIA DC-09 (SIA-DCS) communication protocol is supported. Data encryption can be used. Only event codes are transmitted to the monitoring station — photo verification and transmission of the panic button coordinates are not supported.

What protocols for connecting to Ajax are used by popular CMS software

CMS software Software manufacturer Protocol
Kobra 8 Rubezh NPO Sur-Gard (Contact ID)
Sur-Gard Extended
Mirazh Stels NPP Sur-Gard (Contact ID)
Sur-Gard Extended
Planar Planar Sur-Gard (Contact ID)
Sur-Gard Extended
Proton Center-Proton Sur-Gard (Contact ID)
Sur-Gard Extended
Phoenix 4 Okhrana i Bezopasnost Sur-Gard (Contact ID)
Sur-Gard Extended
Security Center C.Nord Sur-Gard (Contact ID)
Sur-Gard Extended
EGIDA-3 NVP Bolid Sur-Gard (Contact ID)
Sur-Gard Extended
ABsistemDC(NG)v2 Alarm Automatika ABsistemDC(NG)v2
AE-CUBE AElettronica ADEMCO 685
ATE Argo/td> URMET ADEMCO 685
Gemini Alarm Monitoring Software Bold Communications SIA DC-09 (ADM-CID)
SIA DC-09 (SIA-DCS)
Horus Azur Soft SIA DC-09 (ADM-CID)
Immix SMC SIA DC-09 (ADM-CID)
AM/Win system INSOCAM SIA DC-09 (ADM-CID)
Dr. Pfau Fernwirktechnik GmbH LISA SIA DC-09 (ADM-CID)
Kronos Next! s.c. Kronos
Listener ORYX Listener
Manitou Bold Group Manitou
MASterMind A Carrier Company MASXML
Patriot Patriot Systems Patriot Systems
PCN6 Ritm Sur-Gard (Contact ID)
Sur-Gard Extended
Safecon Alcensoft SIA DC-09 (ADM-CID)
SIA DC-09 (SIA-DCS)
Sur-Gard (Contact ID)
Sur-Gard Extended
SBN Innovative Business Software SBN
Sentinel Monitor Computer Systems Sentinel
SIMS II SIMS, Inc. Sur-Gard (Contact ID)
Sur-Gard Extended
SIMS III SIMS, Inc. Sur-Gard (Contact ID)
Sur-Gard Extended
SMS MasterMind SIA DC-09 (ADM-CID)
Softguard Softguard Technologies Corp SOFTGUARD
Stages Bold SIA DC-09 (ADM-CID)
SIA DC-09 (SIA-DCS)
Sur-Gard (Contact ID)
Sur-Gard Extended
URMET URMET S.p.A. SIA DC-09 (ADM-CID)
SIA DC-09 (SIA-DCS)
Sur-Gard (Contact ID)
Sur-Gard Extended
V1 and F1 ESI SIA DC-09 (ADM-CID)
WBB T2i SIA DC-09 (ADM-CID)
Orbitand Replication Service (ORS) Orbitand SIA DC-09 (ADM-CID)
Bykom Bykom SIA DC-09 (ADM-CID)
CAMS Suretek SIA DC-09 (ADM-CID)
Securithor Securithor SIA DC-09 (ADM-CID)

Want to integrate your monitoring app with Ajax?

Apply

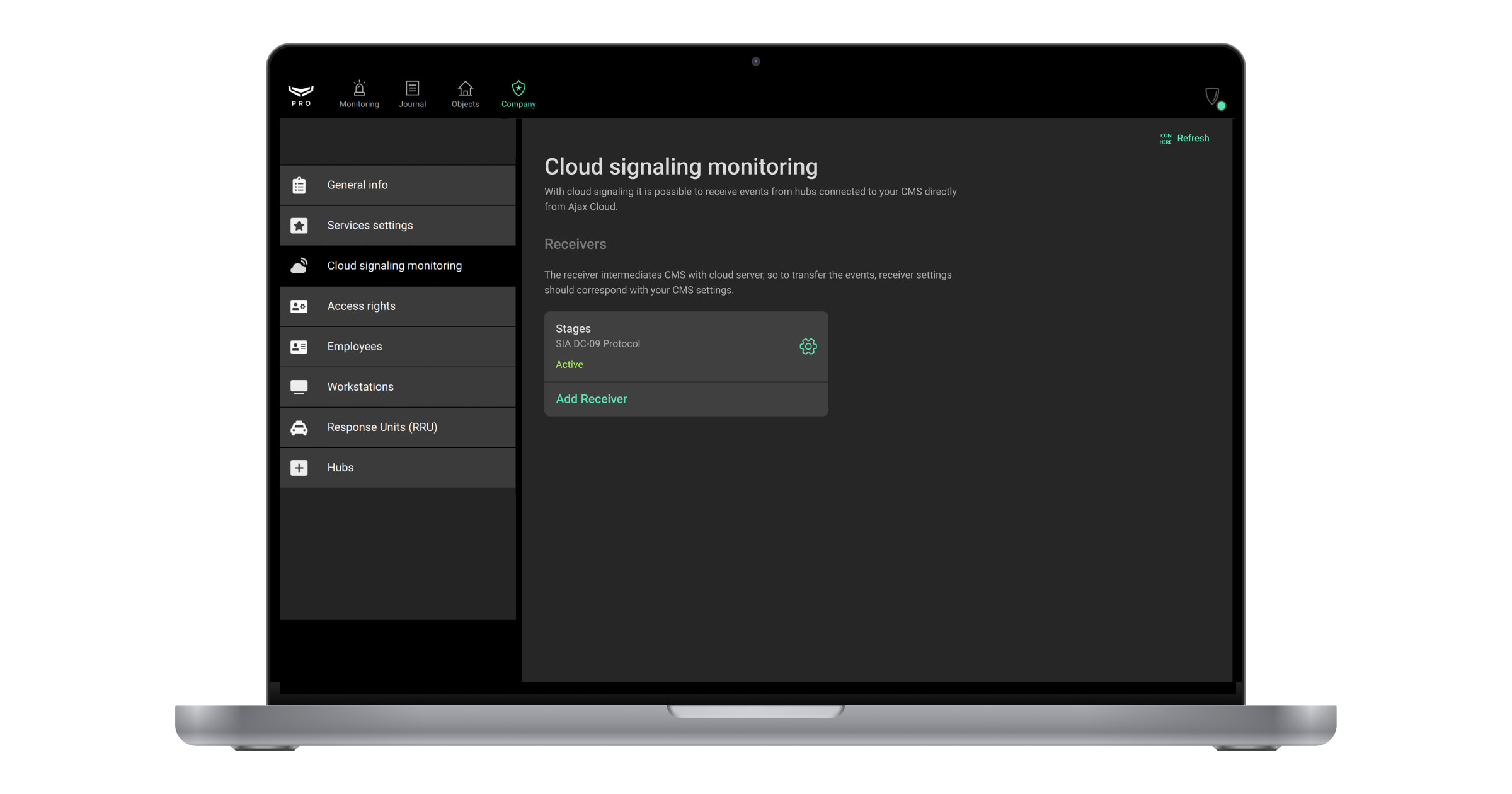

PRO Desktop — CMS by Ajax Systems

ajax hub cms support

We offer our proprietary CMS app for monitoring Ajax security systems. When an object is created, devices are loaded automatically, so engineers do not have to waste time transferring configurations manually. With photo verification operators instantly assess alarms. An intuitive interface speeds up the training of new employees. Delimitation of user roles helps avoid unauthorized access to company data.
