How to replace Hub battery?


During the battery replacement and Hub usage, follow the general electrical safety rules for using electrical appliances as well as the requirements of electrical safety laws and regulations. It is strictly forbidden to disassemble the device connected to the power supply!

In order to replace the battery:

1. Unscrew the fastening screws from the SmartBracket attachment panel.

ajax hub plus

2. Remove the Hub from the attachment panel.

ajax hub plus

3. Disconnect the power and Ethernet cables and remove the SIM card by pressing it, then turn off the Hub by pressing the power button for 3 seconds.

After turning off the Hub be sure to wait for 5 minutes to completely discharge the capacitors!

4. Turn over the Hub and place it on a folded up towel with the Ajax logo down so as not to scratch the body when dismantling. Remove 4 screws with a cross screwdriver (PH1).

ajax hub plus

5. Remove the Hub lid holding its power and Ethernet connectors with your fingers. Put aside the lid with the Ajax logo.

ajax hub plus

6. Unscrew the screws that fix the Hub boards (11 pcs in older models, 10 pcs in new ones).

ajax hub plus

7. Remove the boards from the Hub body lifting them evenly from both sides. The boards are interconnected and should be removed together.

ajax hub plus

If you removed the plastic power button during the dismantling of the Hub, install it together with a gasket into the Hub body. The gasket is placed in the center of the plastic button. When properly installed, the button completely fits into its seat, and its edges fit the grooves.

ajax hub plus

8. Disengage the boards and put aside the smaller one.

ajax hub plus

Do not distort or bend antennas during battery replacement. This may result in Hub failure.

9. Turn the big board to face the battery and disconnect its terminal from the board.

ajax hub plus

10. Separate the battery from the board. The battery can be fixed using two methods: a tape (sticker) or a double-sided adhesive tape.

If the battery of your hub is fixed with tape (sticker), pull it up by applying slight effort.

If the battery is fixed with two strips of adhesive tape, use a plastic card:

  • Push through the first strip of the adhesive tape without applying excessive effort.
    ajax hub plus
  • Place a sheet of paper between the adhesive tape and the battery to prevent the battery from sticking to the board.
  • Repeat this procedure with the second strip of the adhesive tape.
  • Gently remove the residuals of the adhesive tape from the board.

Do not use sharp objects when removing the battery under any circumstances. This may compromise its integrity and cause fire.

11. Connect the terminal of the new battery to the Hub board.

12. Secure the new battery in the same place on the Hub board using the bundled 3M tape with an adhesive backing without damage to the SIM card slot. If installed incorrectly, remove the battery from the board and reinstall it. Lay the battery cables as shown on the figure. Otherwise, cables may be pinched.

Old battery must be recycled according to the disposal rules of Li-ion batteries in your country!

13. Connect the boards together using the connector.

14. Carefully (in order not to bend the antennas) install the boards in the Hub body aligning the Ethernet, SIM, and power connectors on the board with the corresponding openings in the body.

ajax hub plus

Make sure that the battery and its cables are not pinched. When installed correctly, the boards are tight on all supports and are not loose. While holding the boards with the Hub’s back lid, turn the Hub over. SIM card slot, power, and Ethernet connectors should fully enter the seats, and the power button should not sink in. Otherwise, remove the boards and reinstall them on the back lid.

ajax hub plus

15. Secure the board inside the body with screws.

ajax hub plus

16. Cover the Hub with a lid as shown on the figure, turn it over holding the Hub on both sides, and fix the lid with screws.

ajax hub plus

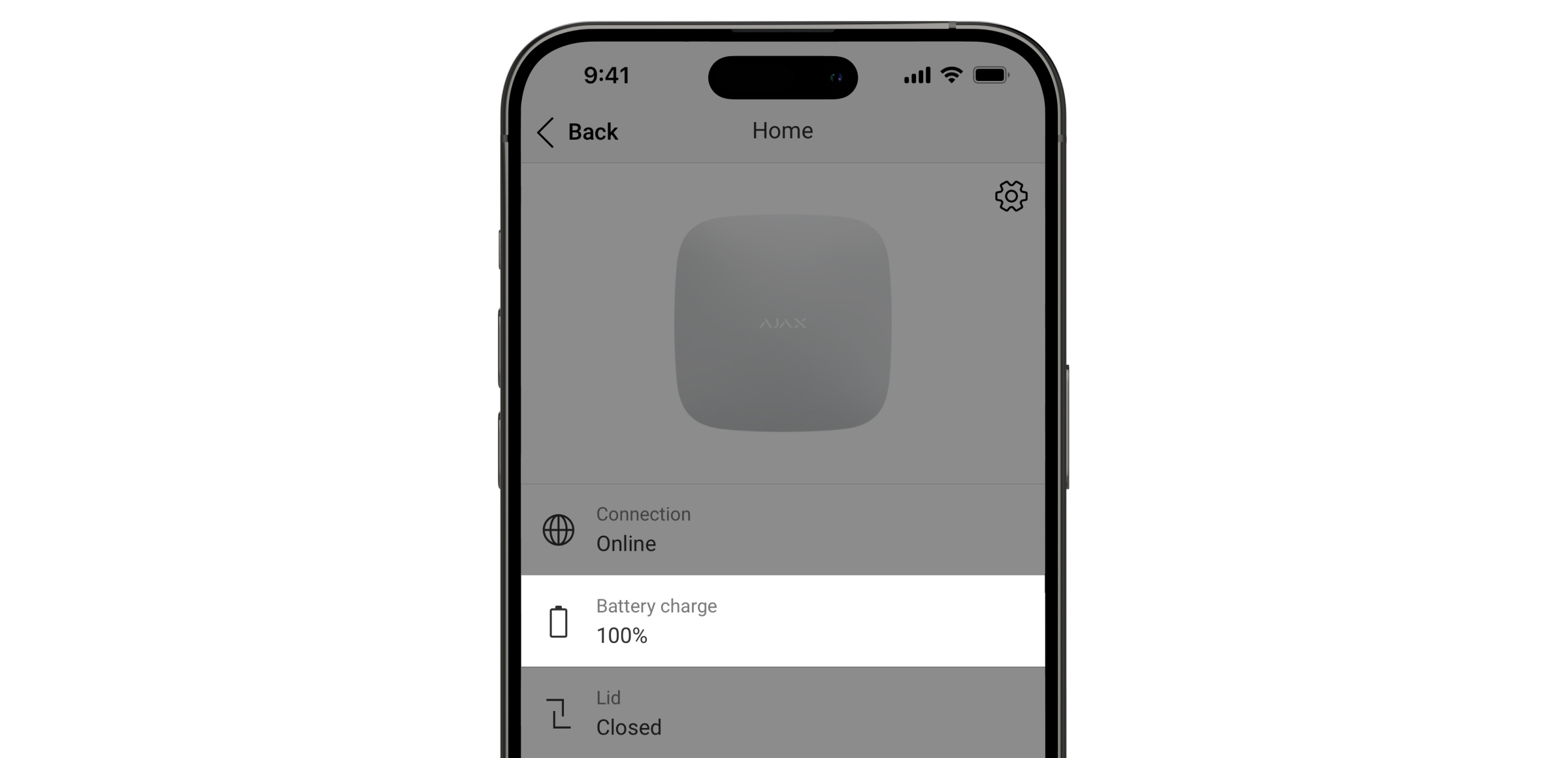

After replacing the battery, it is necessary to check the Hub operation. Turn on the Hub power supply and check the change of the battery charge status after 10 minutes using the mobile application.

ajax мобильное приложение

In case of malfunction it is recommended to contact the Ajax Systems Support or the place of purchase.


Risk of explosion if battery is replaced by an incorrect type. Batteries should not be disposed of as unsorted household waste. Please, use the public collection system to return, recycle, or treat in compliance with the local regulations.
